Uploading Pre-Processed Data

Have more questions? Submit a request

With GeoTIFF uploading, you can take pre-processed orthomosaic maps and upload them into DroneDeploy so you can easily host, view and share those maps. You'll also be able to use our tools, like Plant Health and Annotations.

To upload your existing GeoTIFFs, please follow the instructions below:

Uploading Pre-Processed GeoTIFF maps:

Choose Upload from the top of your map view:

Screen Shot 2023-12-27 at 1.16.47 PM.png

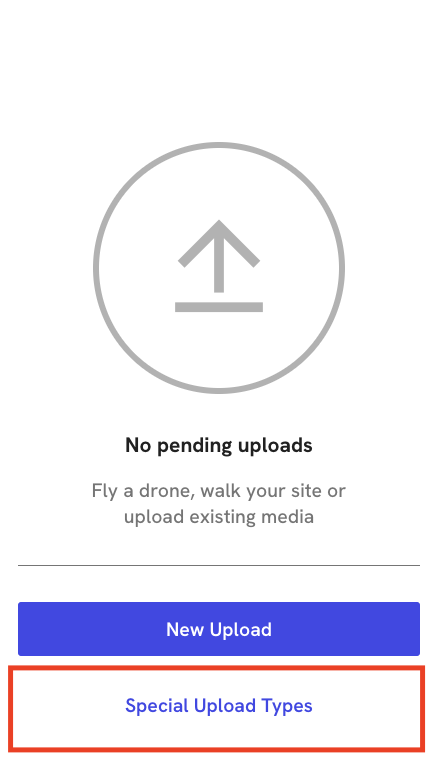

In the left panel, choose Special Upload Types:

Screen Shot 2023-12-27 at 1.17.01 PM.png

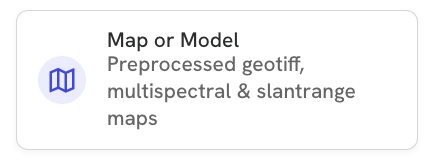

Choose Map or Model for your Pre-Processed GeoTIFF:

Screen Shot 2023-12-27 at 1.18.56 PM.png



Pre-Processed GeoTIFF Map Limitations & Requirements
- Your GeoTIFF must be properly geo-tagged. - 1 GB GeoTIFF file size limit. - 8 bit GeoTIFF file limit.

Maps processed from GeoTIFFs do not include elevation data, so certain features like volume measurements, 3D modeling and certain export types are not available.
