Compatible Drones with DJI Docks:

DJI Dock Version

Compatible Drones

DJI Dock 1

M30T (Matrice 30 Thermal)

DJI Dock 2

M3D, M3TD (Mavic 3 Enterprise/Thermal)

DJI Dock 3 M4D/M4DT (Matrice 4 Enterprise/Thermal)

* You can’t use an existing M30 or M3 Drone to use on the dock. The Dock 1 and Dock 2 will only support the M30T and M3D/M3TD drones that come with the dock purchase.




DJI Matrice 3D/3TD Features:

Feature

DJI Matrice 3D

DJI Matrice 3TD

Integrated RTK antennas

Yes

Yes

Omnidirectional obstacle sensing

Yes

Yes

Automatic obstacle bypass

Yes

Yes

Maximum Flight Time

50 minutes

50 minutes

Operating Radius

6 miles

6 miles

IP Rating

IP54 (wind and dust resistance)

IP54 (wind and dust resistance)

Recharge Cycles

Up to 400 cycles

Up to 400 cycles

Camera Specifications

Tele camera, wide camera

Tele camera, wide camera, infrared camera

Infrared Camera

N/A

40mm Format Equivalent  Normal Mode: 640x512@30fps UHR Infrared Image Mode: 1280x1024@30fps                   28x Digital Zoom

Images

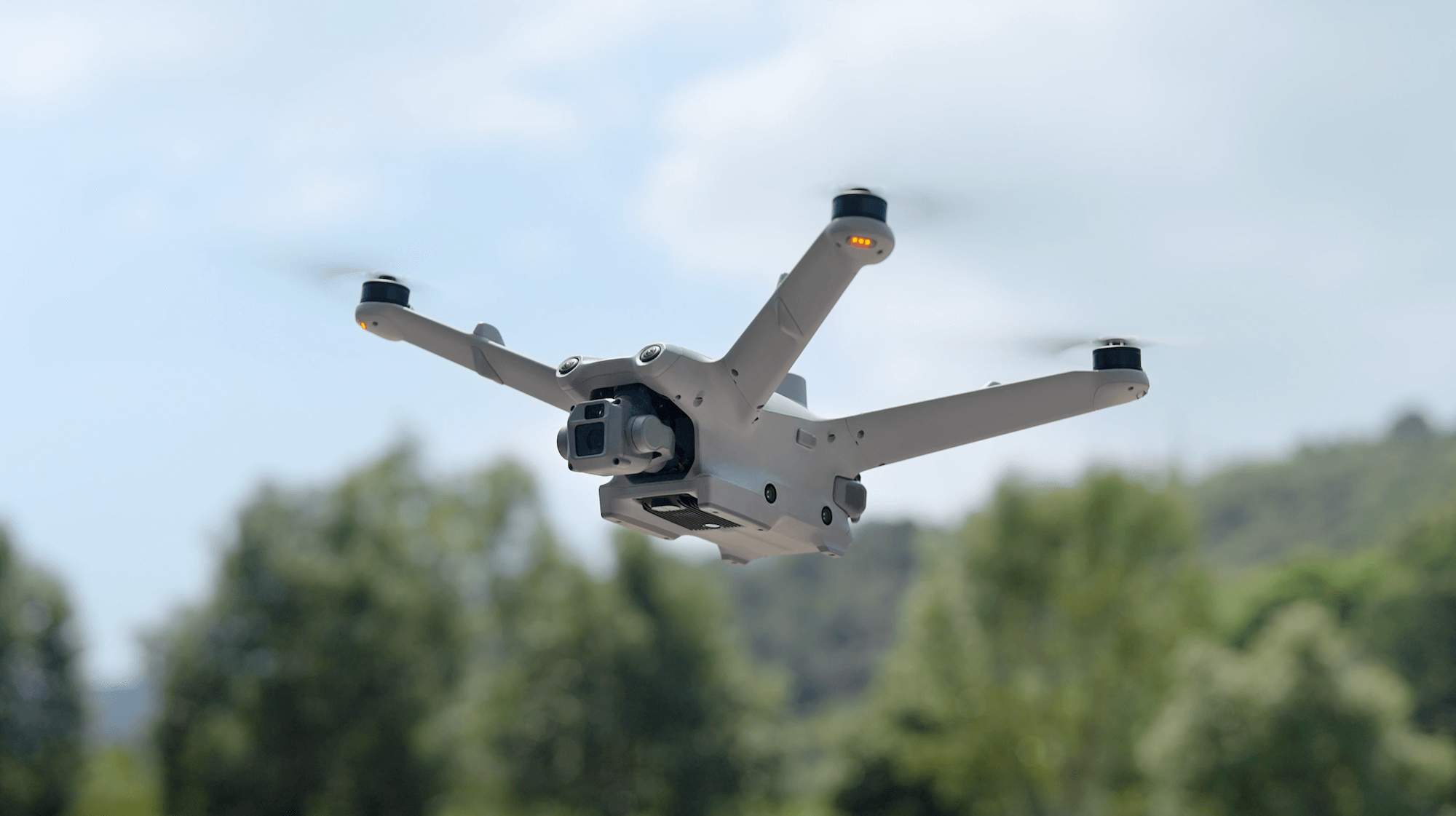

Matrice 3TD.png


Availability:

Get in touch with sales@dronedeploy.com for more information about local authorized DJI Enterprise dealers.



Current Recommendation

We still recommend the DJI Dock 2 for customer hardware purchases. The Dock 2 is a reliable and proven option, fully compatible with Dock Automation, and well-suited for most Enterprise needs. See reasons below why customers might want to purchase Dock 3 which comes at an additional cost. The Dock 1 is not recommended as this is not being actively supported by DJI.



Who should buy the Dock 3?

  • Improved Dock Insulation and Temperature Control: Works at colder and hotter temperatures where the dock 2 struggled. Especially sites in locations that were often over 100F. IP56 rated.
  • Future proof dock hardware: This dock is supposed to be able to support the Matrice 5 series once available.
  • Improved Drone Obstacle Avoidance: Enhanced safety and customer experience which will become more important in BVLOS operations
  • Map larger areas in a single battery: Up to 29% faster mapping, 66% faster accent and descent for quicker mission completion, and 10% longer battery life mean ~40% larger areas can be mapped on a single battery - great for mega projects like Data Centers which would have needed a fixed wing drone.
  • New add on modules:
    • Obstacle avoidance sensor with Lidar for flying around environments like substations with wires or thin objects that can be difficult to detect
    • Relay station to put the radio communications and GPS receiver up on a roof while the dock can be on the ground somewhere.
