A 3D scan is far more than a visual record of your site—it becomes a measurable, collaborative workspace when paired with the right tools. By using built‑in measurement and annotation features, teams can capture context, quantify conditions, and communicate clearly without needing to be physically on site.
3D Scan Tools

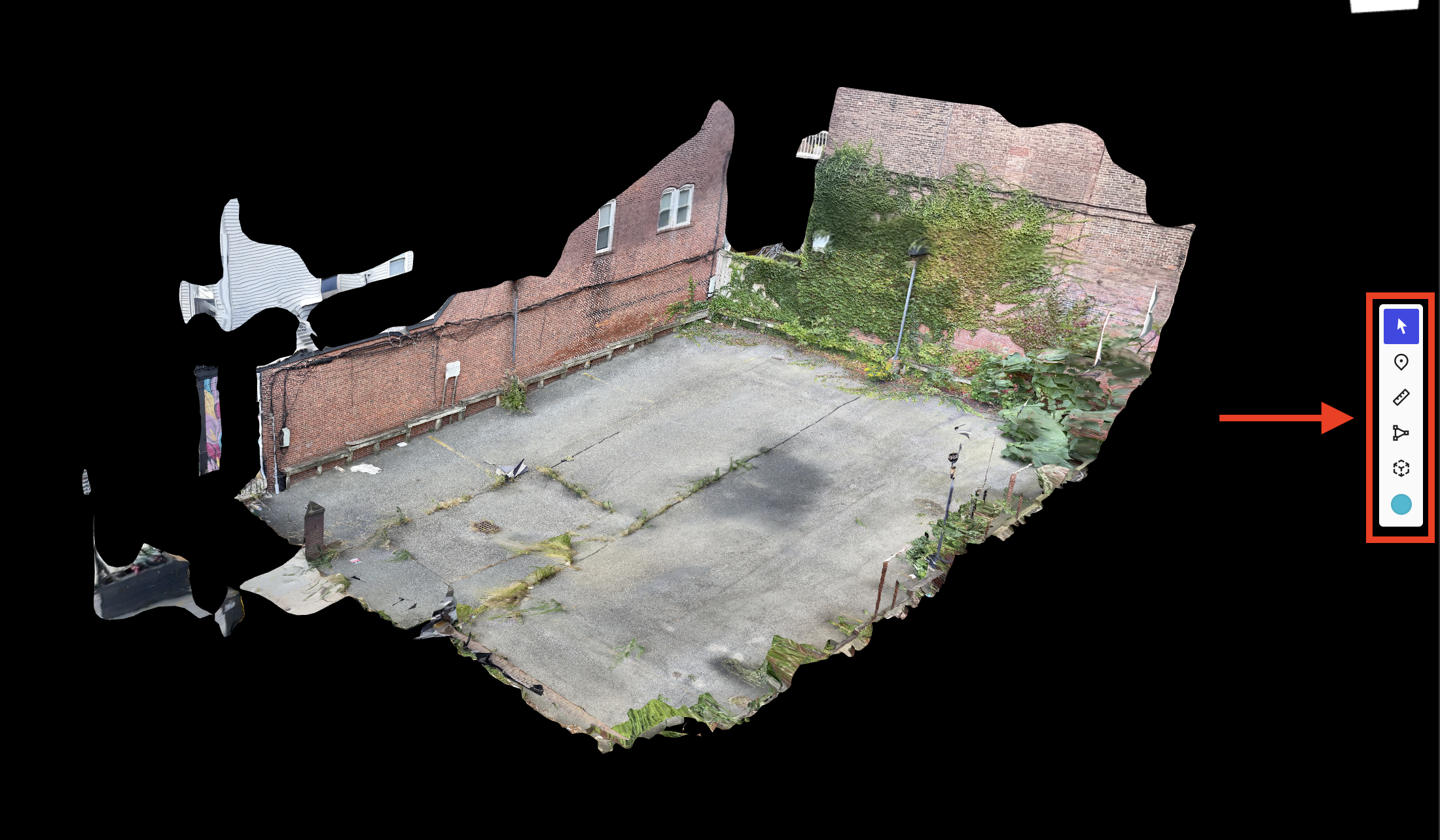

Once your 3D scan is processed, you can use a range of built-in tools to measure, mark up, and communicate site information directly on the model:
- Measure / Draw Line

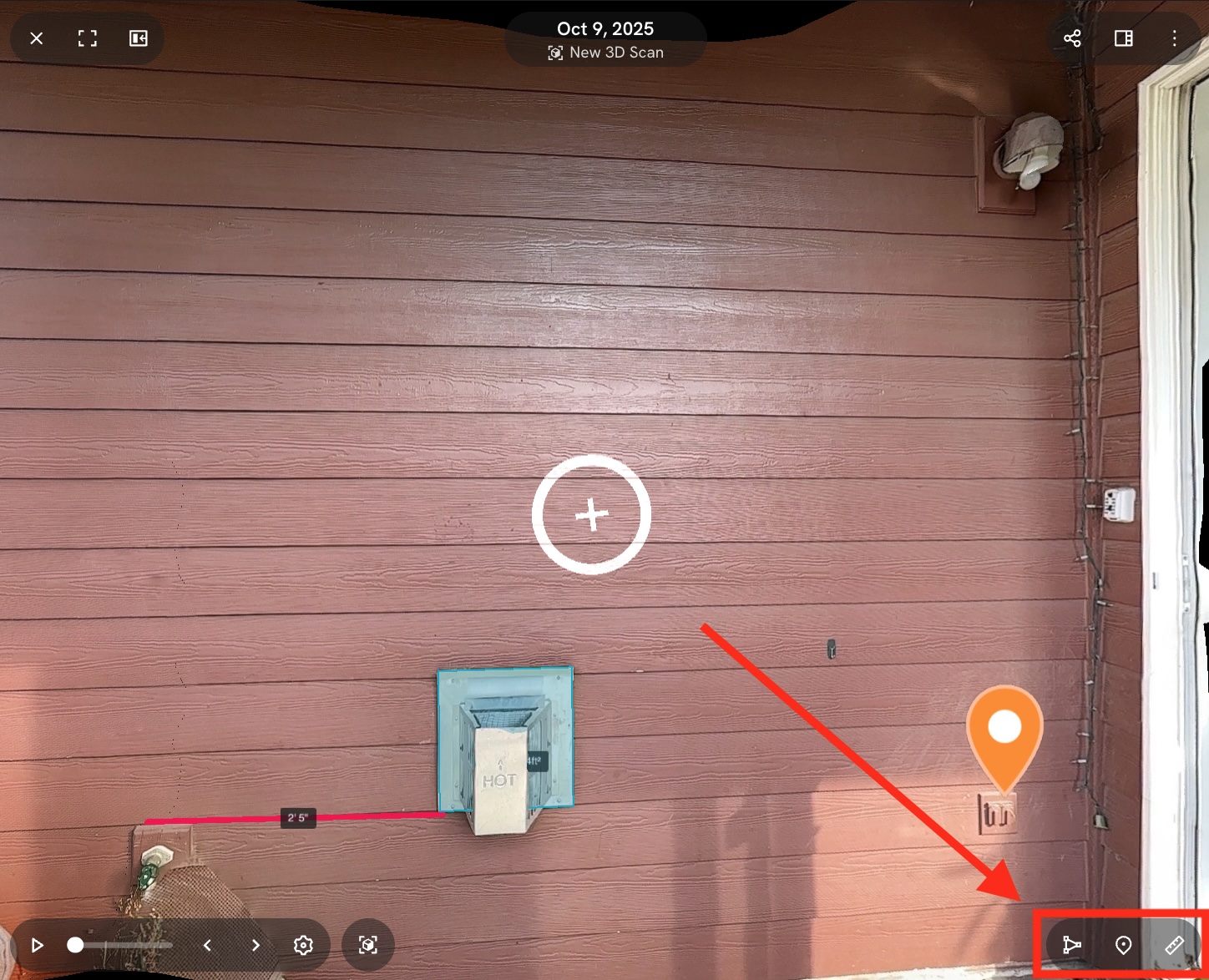

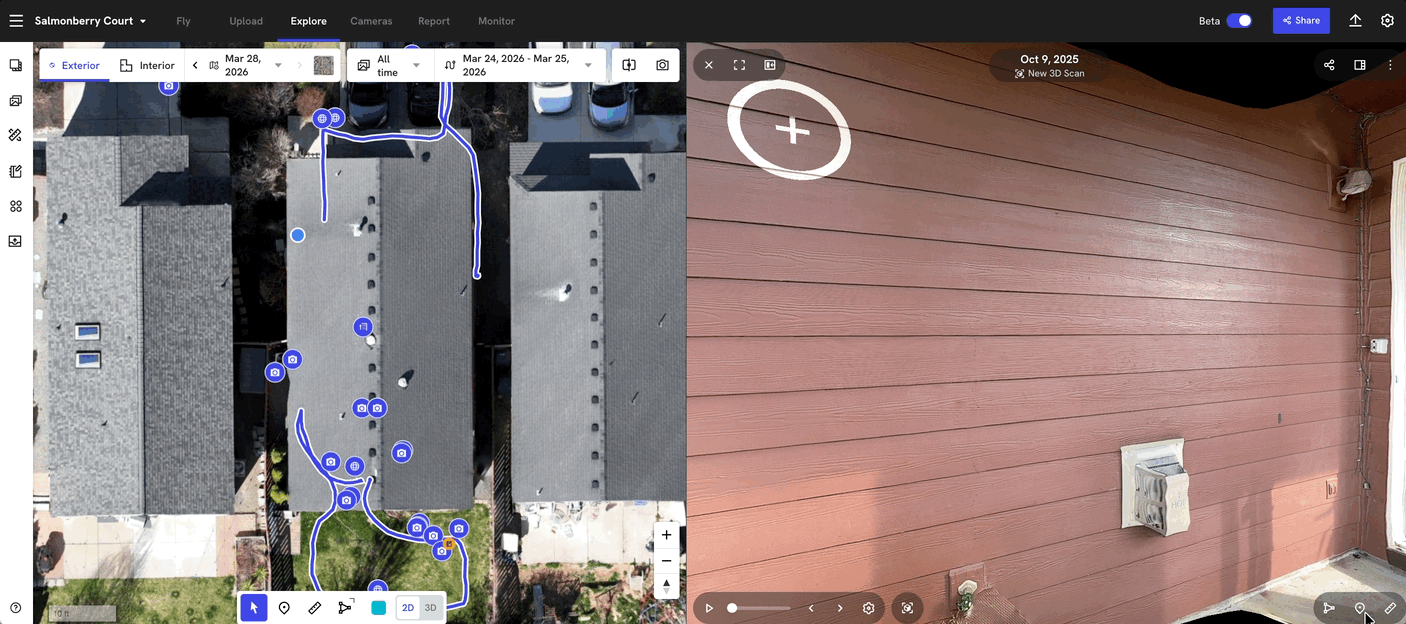

Use the line tool to take accurate point-to-point measurements across the 3D model. This is ideal for checking distances such as wall lengths, corridor widths, or clearances around equipment. Lines can be snapped to key features to improve precision, and each measurement is saved for future reference. - Point Annotations

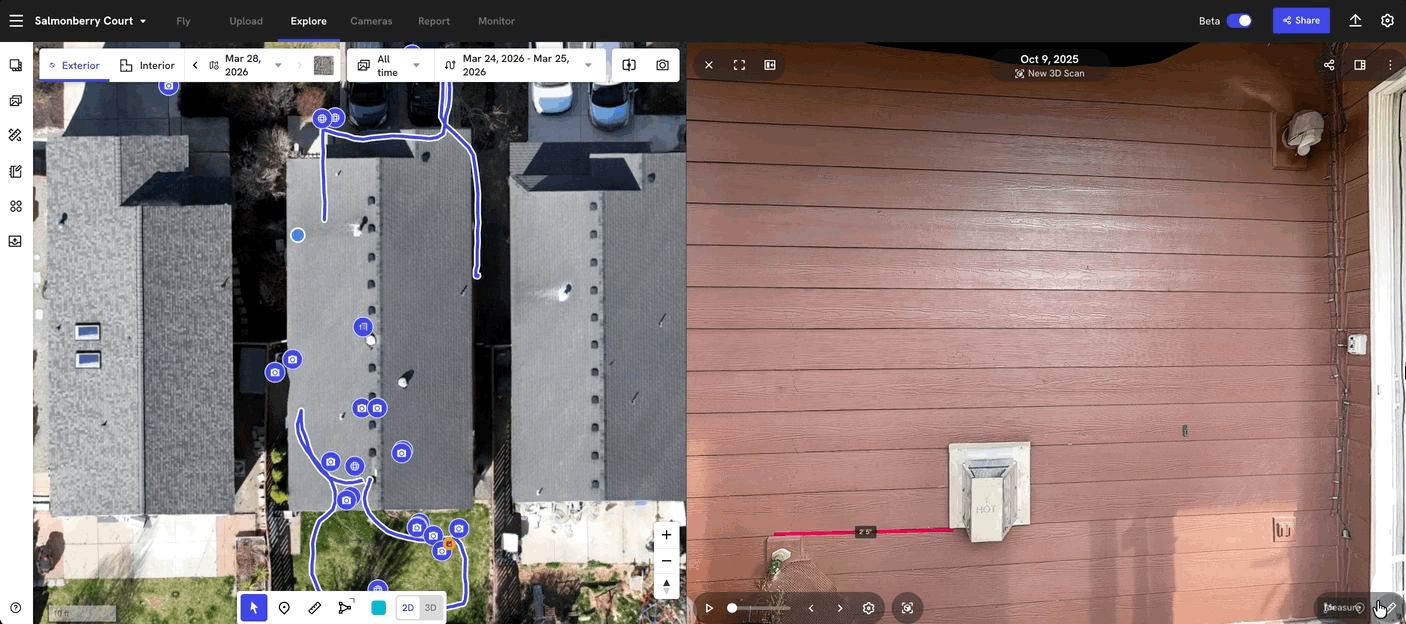

Add point-based annotations anywhere on the 3D scan to capture important context. These can include installation notes, punch-list items, RFIs, safety concerns, or progress updates. Each annotation is pinned to a specific point on the model, making it easy for remote stakeholders to understand exactly where an issue or task is located. - Area

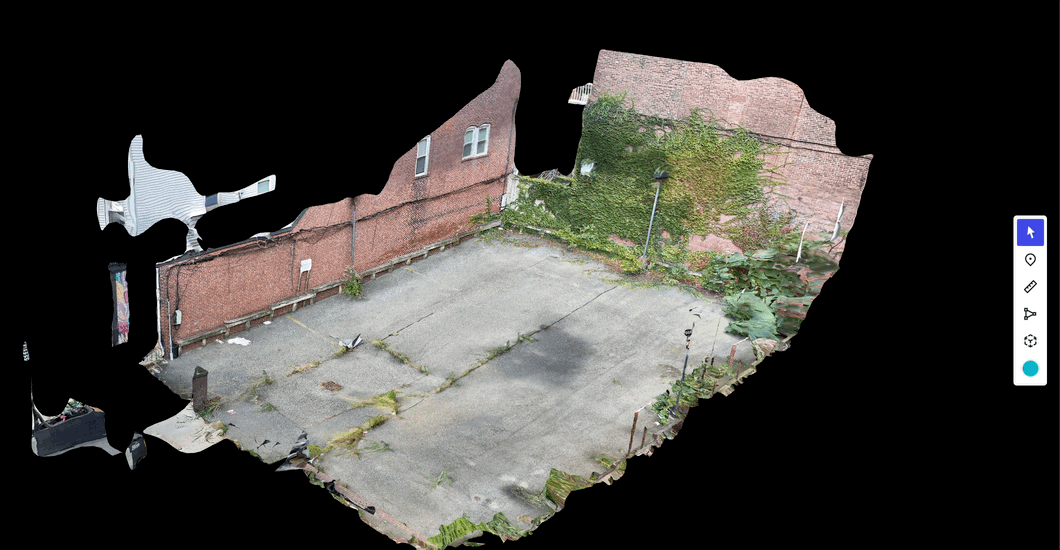

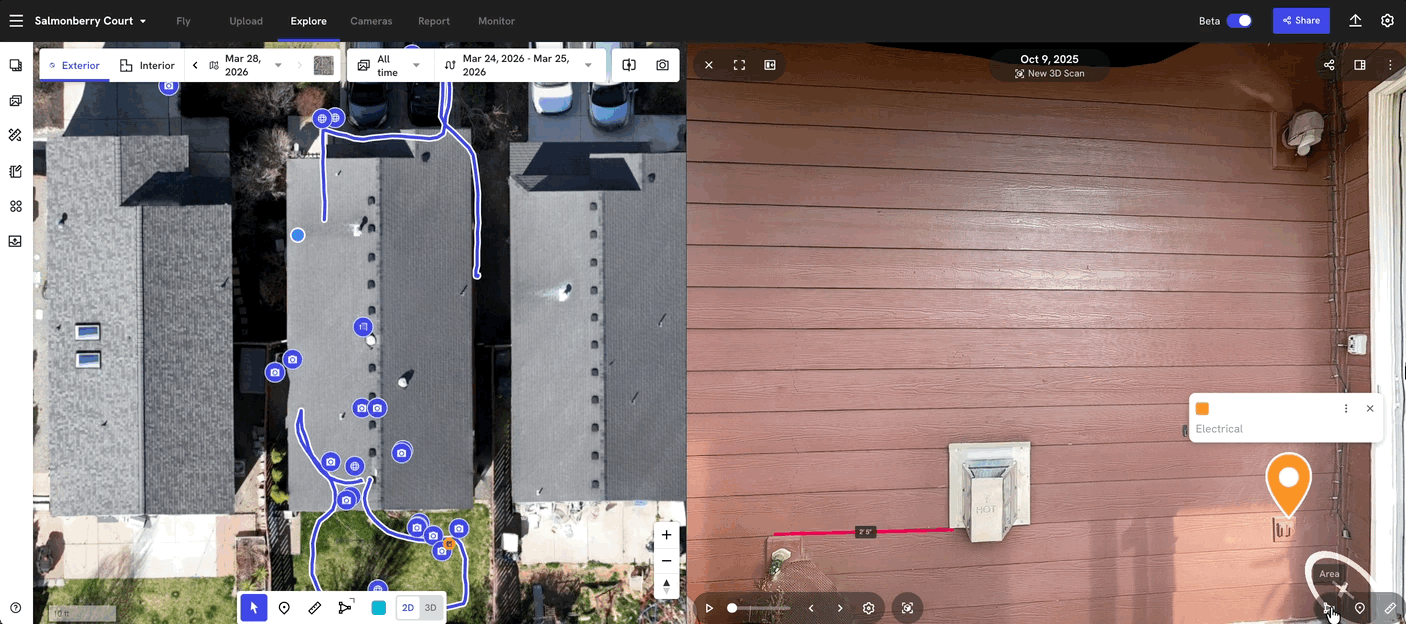

For more advanced quantification, use area tools to calculate surface coverage (e.g., flooring, roofing, or painting extents). These metrics help reduce site visits and support more accurate planning and cost estimation. - Edge Annotations

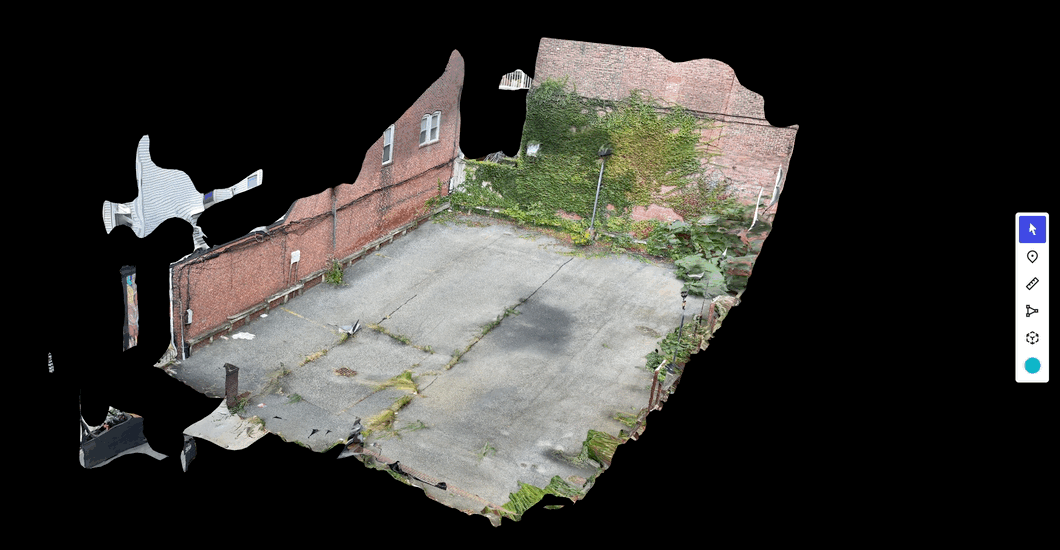

Use edge annotations to mark and describe specific edges or boundaries within the 3D scan, such as slab edges, beam lines, roof perimeters, or façade transitions. This helps teams clearly communicate design intents, alignment checks, and potential clash or safety concerns along critical lines in the model.
Together, these 3D scan tools turn your model from a simple visual reference into a measurable, collaborative workspace, enabling teams to make informed decisions without needing to be physically on site.
