The interior PDF download allows users to easily access and share detailed interior maps even when offline.

Interior PDF Download

The interior PDF download feature is designed to streamline your project documentation process. This powerful tool allows users to export a PDF of a project level with all media, including selected walks, linked to the public view using a single overlay, which defaults to the Base Floor Plan. The interior PDF download is available for DroneDeploy Ground Customers on Enterprise ACV pricing and Enterprise Projects. Please contact your Account Executive for more information.

669e6fd2587c76da85b269c7_Interior PDF Downloads.gif

How It Works:

  • Permissions: Users must have Editor or higher permissions on the project.
  • Public Share Links: Projects must allow public share links on media.
  • Media Representation: All media will be represented as individual pins in this initial release. Support for media groups will be added in Q3.
  • Filters Applied: Any filters (dates, media types, etc.) applied to the Level will be reflected in the export.

Key Benefits:

  • Comprehensive Documentation: Easily create detailed PDF exports of project levels with linked media for thorough documentation and review.
  • User-Friendly: Simple to use for those with the necessary permissions, ensuring that important project data is easily accessible and shareable.
  • Customization: Apply filters to tailor the export to your specific needs, ensuring relevant information is highlighted.

How to Download Interior PDF:

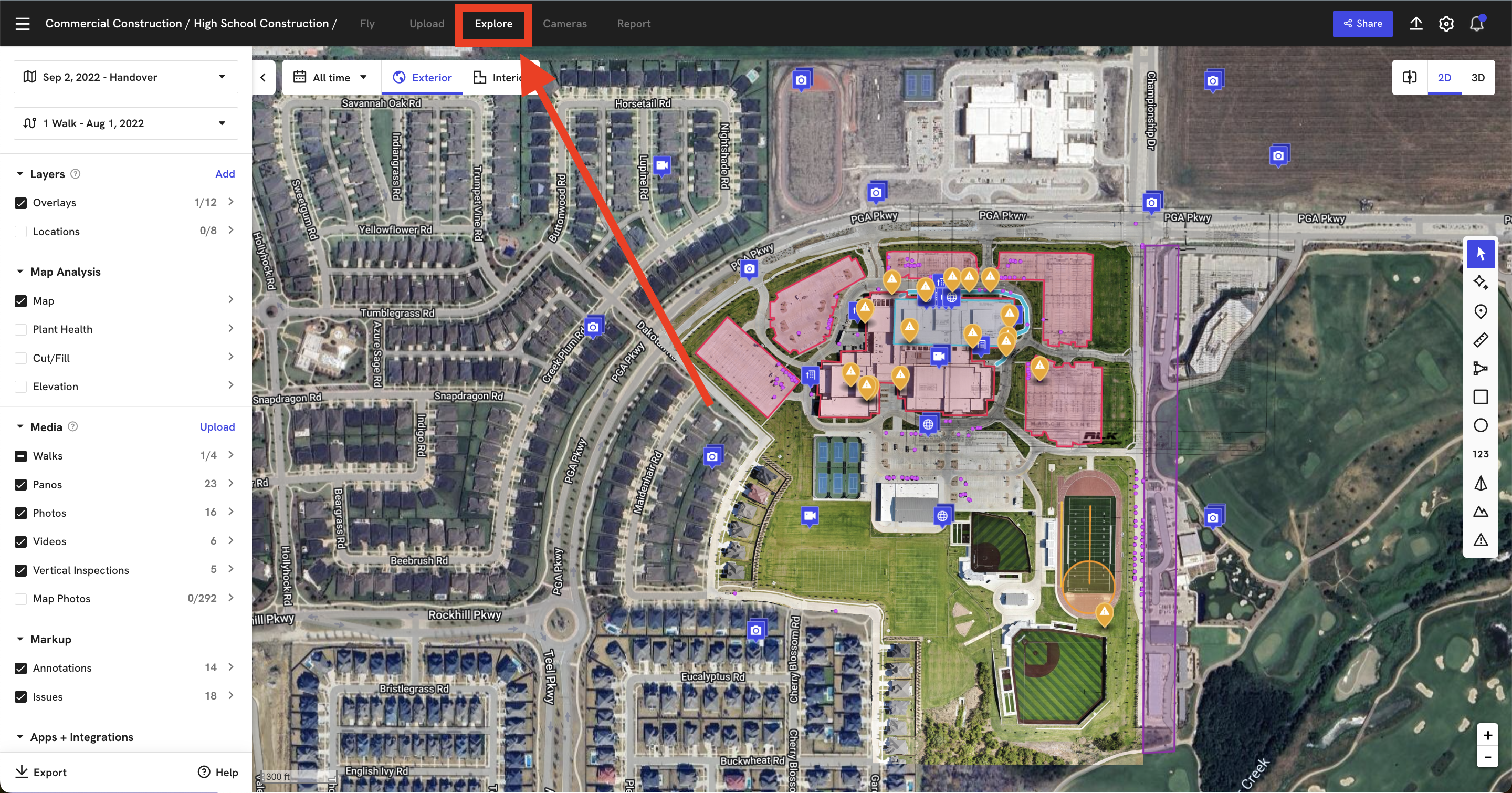

Step 1: Navigate to the EXPLORE Tab of the project with the interior level you want to export as a PDF.

Screenshot 2024-07-23 at 17.52.33.png

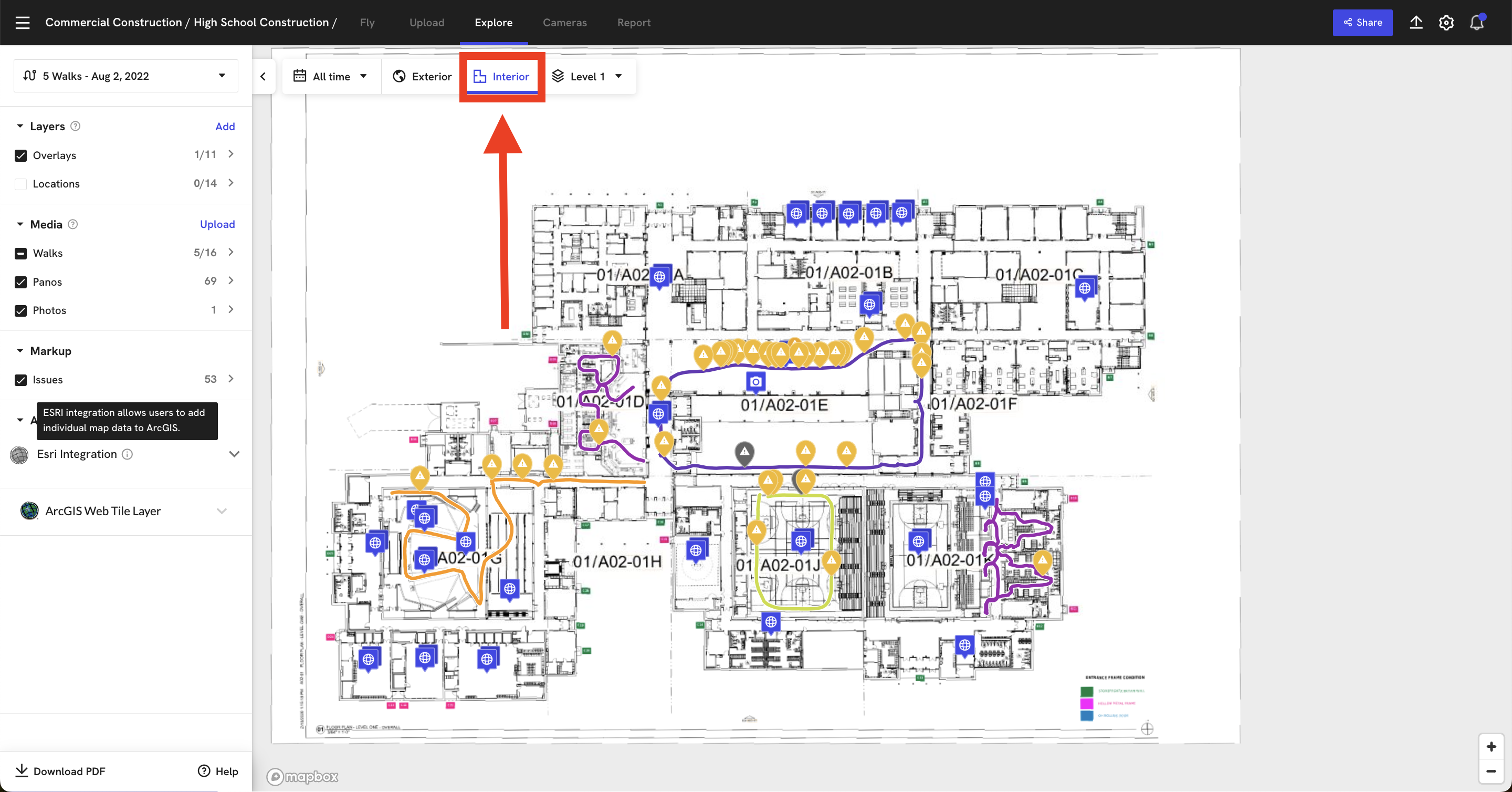

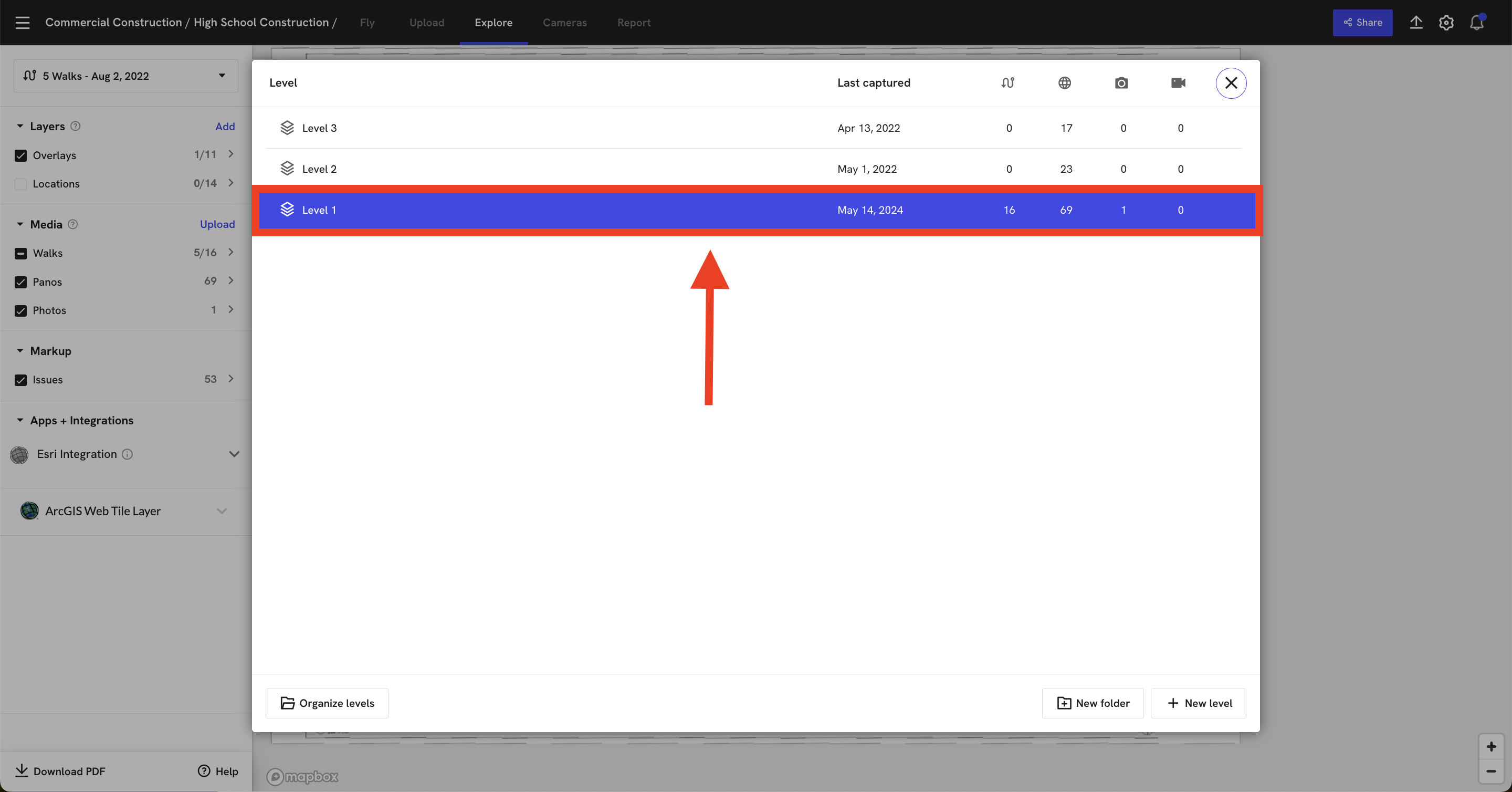

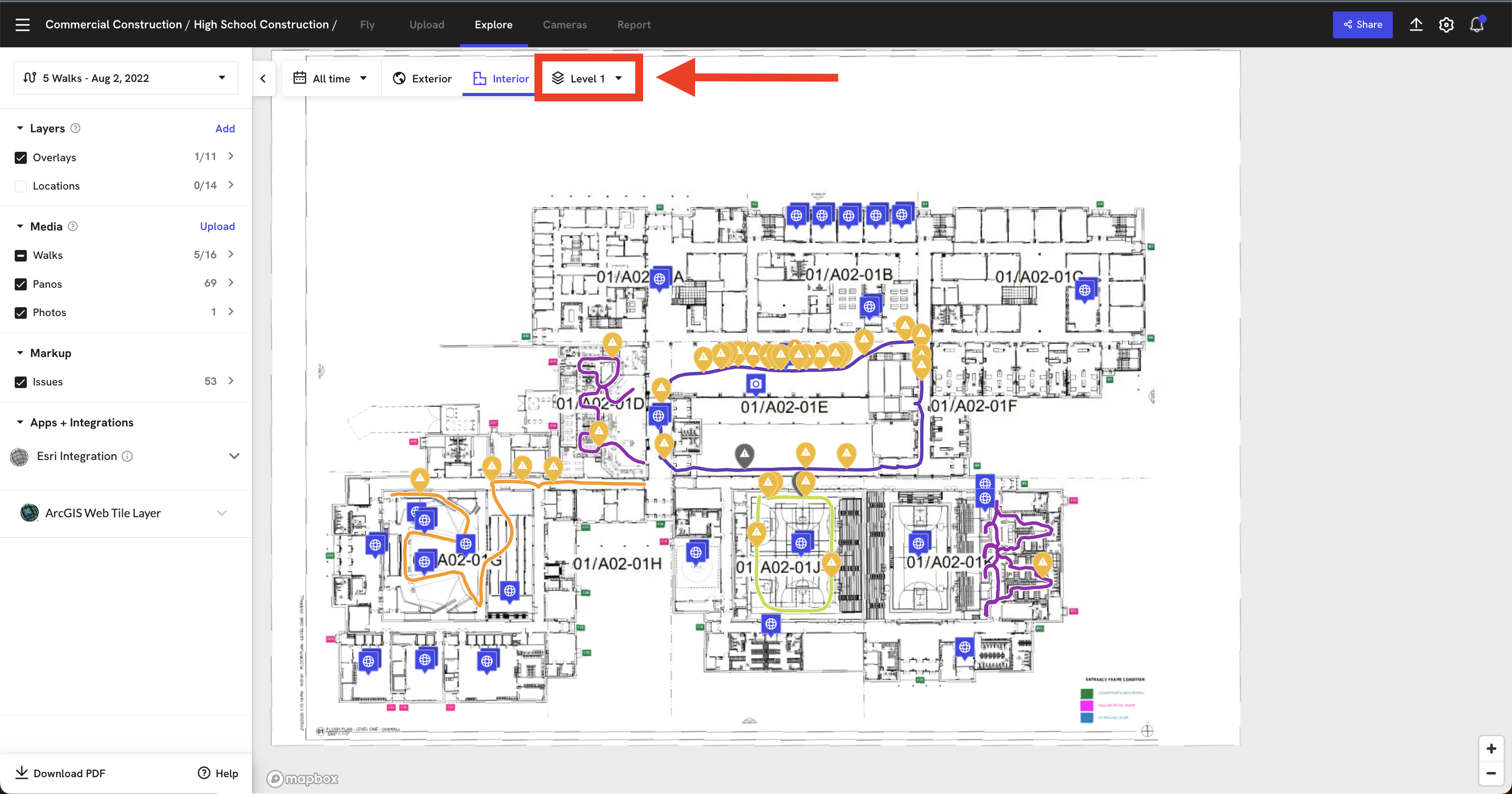

Step 2: Select the Interior view to view levels and select the Level you want to export.

Screenshot 2024-07-23 at 17.53.04.png

Screenshot 2024-07-23 at 17.53.39.png

Screenshot 2024-08-02 at 15.21.25.pngScreenshot 2024-07-23 at 17.54.09.png

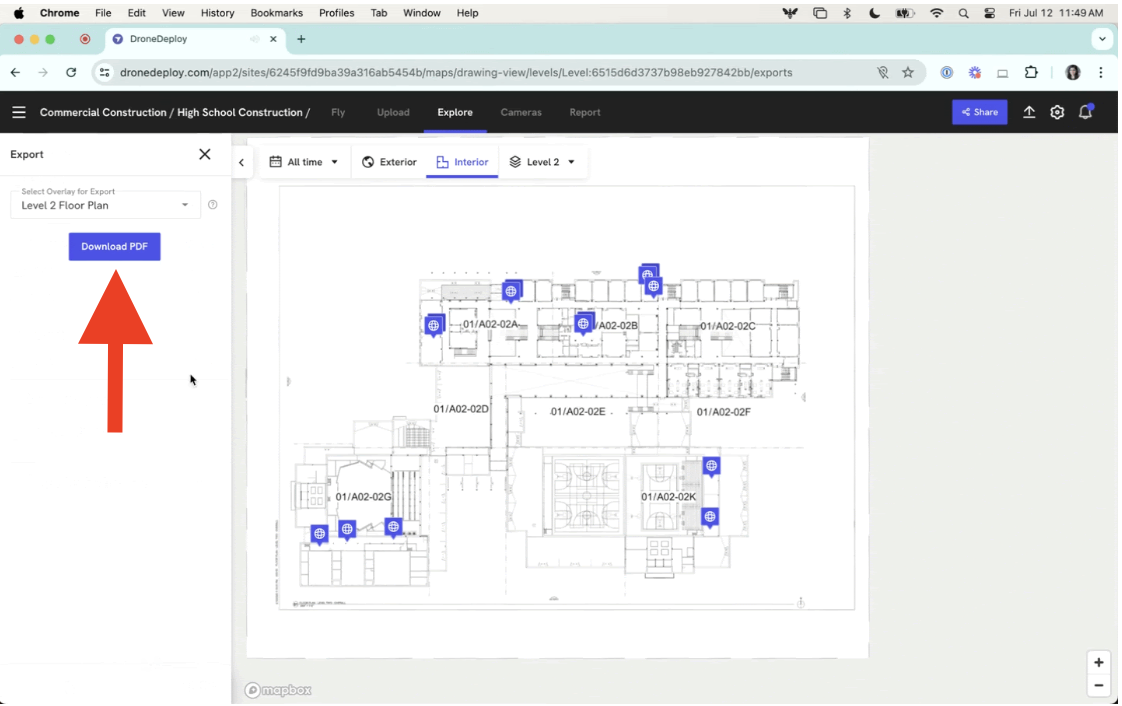

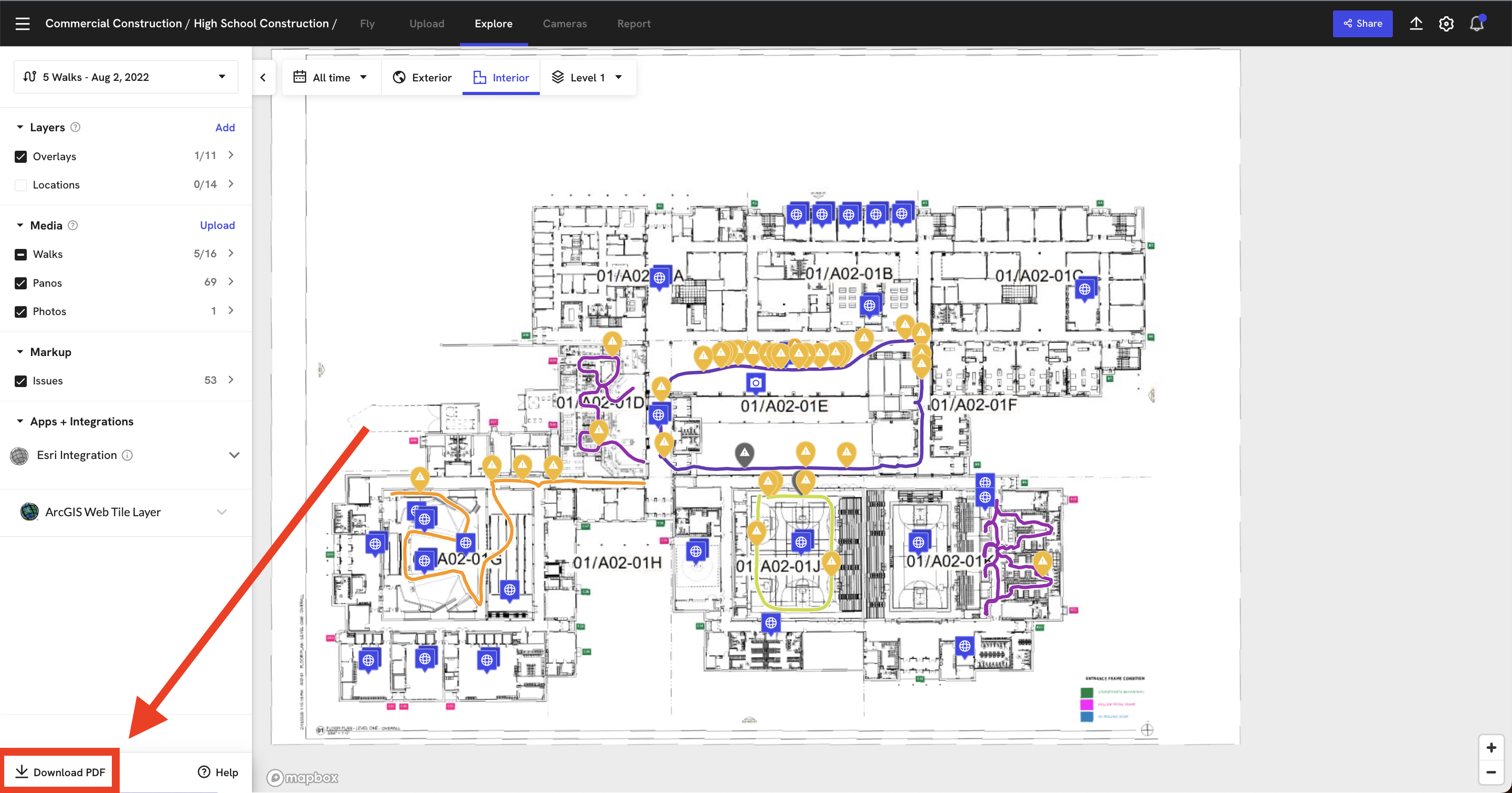

Step 3: Select the "Download PDF" option in the bottom left of the screen to export a PDF of the level selected to view.

Screenshot 2024-07-23 at 17.54.43.png

Screenshot 2024-08-02 at 15.21.25.png
