Flight planning allows thermal drone operators to choose which lens captures media during a mission, eliminating the need to set the desired capture lens in the DJI Pilot 2 App:
Visible (RGB Only)
Thermal (IR Only)
Both (RGB + IR)
Selecting a specific capture lens drives the flight path and capture speed to match the chosen lens. Setting the capture lens ensures you collect only the media you need, saving storage space and executing missions efficiently without requiring manual deletion of extra images.
Availability
Not available yet! ETA coming soon. Please reach out to Support@dronedeploy.com for information. When available, this feature is available to thermal drone operators using the following hardware models:
DJI M3T
DJI M4T
DJI M3TD
DJI M4TD
Anzu Raptor T
How to set the capture lens
Open an existing flight plan or create a new flight plan on the remote controller or web interface.

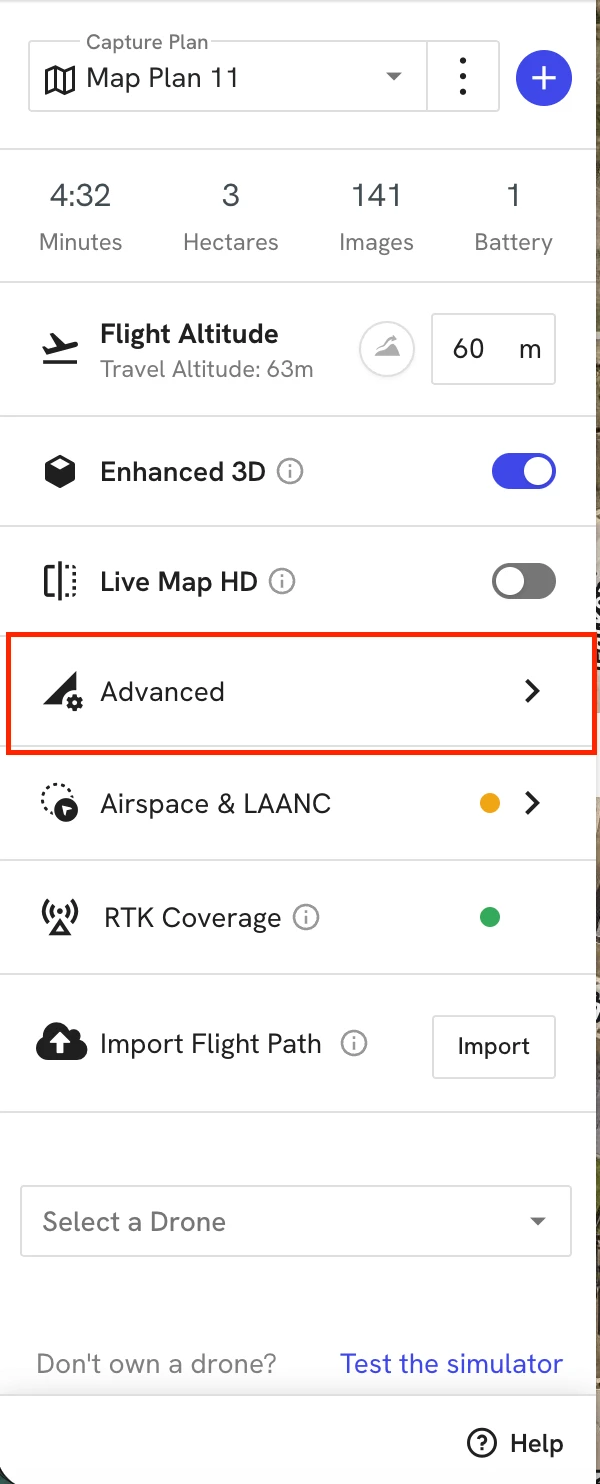

Select Advanced.

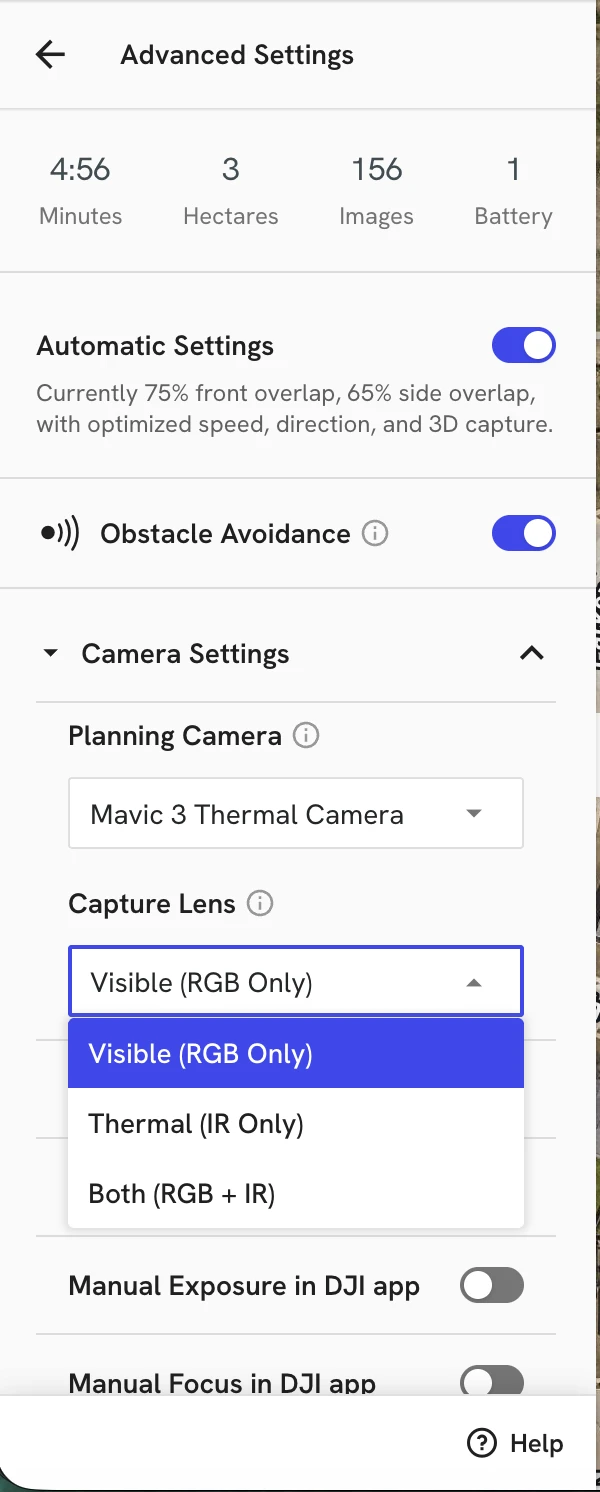

Expand Camera Settings.
Select the desired image capture lens. The time and estimated image count update as you switch between visible and thermal options.
Limitations
One capture lens mode applies per plan. Switching capture lens modes mid-plan is not supported.
Previous plans default to Both (RGB + IR).
Panorama and Stand Count flights do not support thermal photos.
